RFID Inductive Card Reader Module RC522 With Tags

More Views

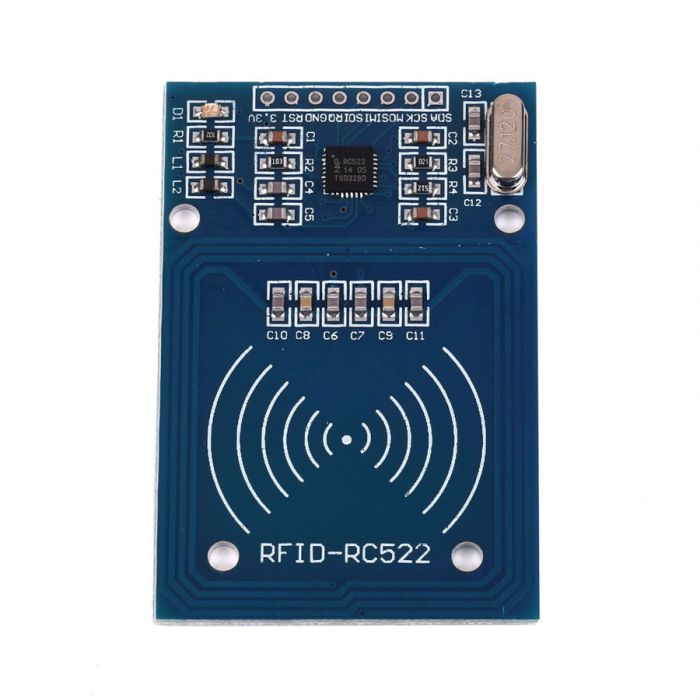

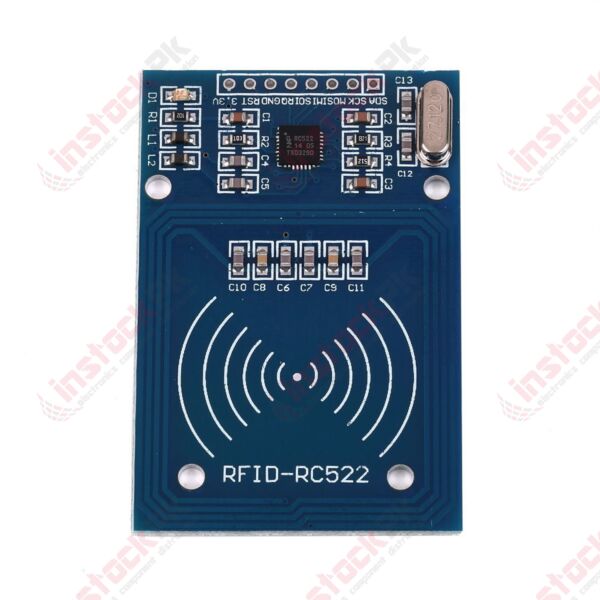

RFID Inductive Card Reader Module RC522 With Tags
SKU: MD-00064
PKR 390.00
  • Buy 3 for PKR 375.00 each and save 4%
  • Buy 10 for PKR 360.00 each and save 8%
  • Buy 50 for PKR 325.00 each and save 17%

Availability: In stock

RFID Inductive Card Reader Module RC522 With Tags
Description

Details

Features:

  1. MF RC522 is applied to the highly integrated read and write
  2. 13.56MHz contactless communication card chip
  3. Low-voltage, low-cost, small size of the non-contact card chip to read and write
  4. Smart meters and portable handheld devices developed better choice
  5. The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz
  6. passive contactless communication methods and protocols
  7. 14443A compatible transponder signals
  8. The digital part of to handle the ISO14443A frames and error detection.

Specifications:

  1. Current :13-26mA / DC 3.3V
  2. Idle Current :10-13mA / DC 3.3V
  3. Sleep current: <80uA
  4. Peak current: <30mA
  5. Operating Frequency: 13.56MHz
  6. Supported card types: S50, S70, UltraLight, Pro, Desfire
  7. Product Physical Characteristics: Dimensions: 40mm × 60mm
  8. Environmental Operating temperature: -20-80 degrees Celsius
  9. Environment Storage temperature: -40-85 degrees Celsius
  10. Relative Humidity: 5% -95%
  11. Data Transfer Rate: Max. 10Mbit / s
  • Related Documents
  • Additional Information

    Additional Information

    Part Number No
    Manufacturer Made in China
    Weight (g) 100.0000
