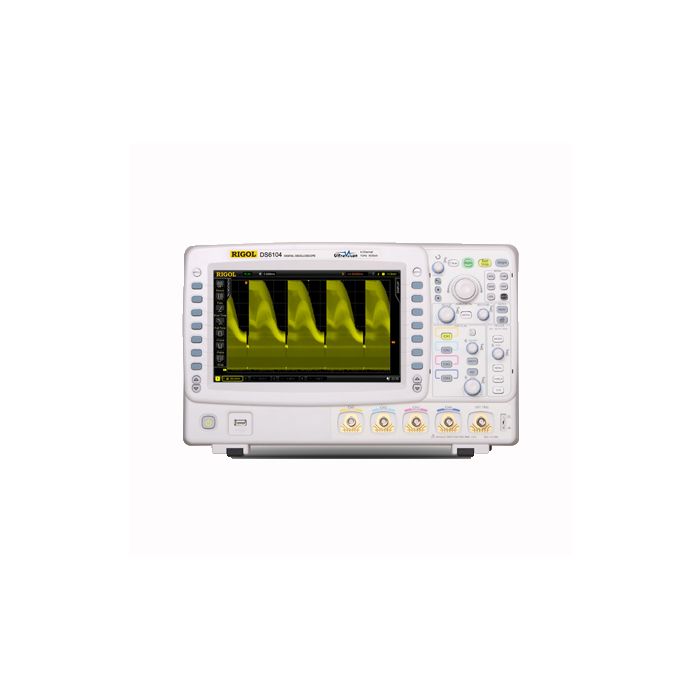

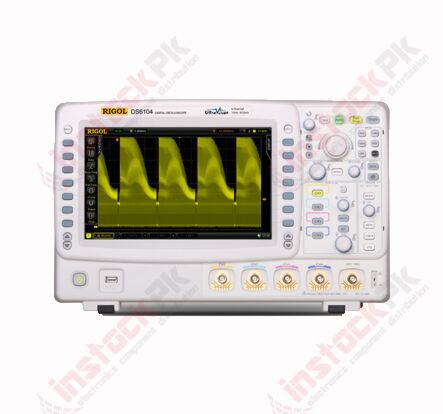

Rigol 4-Channel Digital Oscilloscope DS6104 (1GHz)

SKU
MD-00910
Special Price PKR 1,225,500.00 was PKR 1,824,755.00
In stock
Quantity: 0
Rigol 4-Channel Digital Oscilloscope DS6104 (1GHz)
  • Buy 3 for PKR 1,164,225.00 each and save 5%
  • Buy 5 for PKR 1,102,950.00 each and save 10%

Rigol Technologies DS6104 4-channel 1GHz Digital Oscilloscope samples at 5GSa/s (single channel mode) and features an amazing 140 million data samples in its memory for drilling down into infrequent signals like glitches. Its waveform capture rate is a rapid 180,000 waveforms per second – much faster than many other scopes. Recommended probes (not supplied) include the RP7150 1.5GHz bandwidth differential and single-ended active probe. The DS6104 has been designed by RIGOL utilizing many key technological breakthroughs from the highest-end scopes, and is purposed to make an engineers’ testing life easier. It's designed for market segments ranging from communications, semiconductor, computing, aerospace defense, instrumentation, research/education, industrial electronics, consumer electronics and automotive industries, which can all benefit from its innovative technology, industry leading specifications, powerful trigger functions, and broad analysis capabilities. Detecting high speed signal and device characteristics is now easier than ever with this the most advanced digital oscilloscope series in its class.

FEATURES:

  1. Up to 4 Analog Channels
  2. Up to 1 GHz Bandwidth
  3. 5 GSa/sec max sample rate
  4. 140 Million Memory Points Standard
  5. 180,000 Waveforms per Second Acquisition
  6. 180,000 Frames Recording Capability
  7. Trigger modes: edge, pulse width, slope, video, RS-232, I2C, SPI, and CAN (serial data trigger modes are standard)

SPECIFICATIONS:

Model

DS6062

Bandwidth

600 MHz

Analog Channels

2

Vertical Sensitivity

2 mV/div - 10V/div

Real-time Sample Rate

5 GSa/s(single channel mode),2.5 GSa/s(dual channel mode)

Memory Depth

140 Million Points

Waveform Acquisition Rate

180,000 Waveforms per Second

Standard Interface

USB Host & Device, RS-232, P/F Out

Vertical Resolution

8 bits

Math

+, -, ×, FFT, customizable user defined

Waveform Record

180,000 Waveforms

Cursor Measurements

Manual, Track and Auto Measure modes

RELATED DOCUMENTS:

  1. Datasheet.
  2. User Guide.
  3. Specification.

PACKAGE INCLUDES:

  1. 1 X Rigol 4-Channel Digital Oscilloscope DS6104 (1GHz)
Weight (KG) 10.000000
Manufacturer RIGOL
Maximum Input Voltage 100 V-240 V, 45 Hz-440 Hz
Input Coupling DC, AC or GND
Input Impedance (1 MΩ±1%) || (14 pF±3 pF) or 50 Ω±1.5%
Probe Attenuation 0.01X-1000X,1-2-5 step
Sampling Mode Real-time Sample, Equivalent Sample
Sampling Rate 5 Gsa/s
Storage Depth single-channel: Auto, 14k pts, 140k pts, 1.4M pts, 14M pts and 140M pts are available dual-channel: Auto, 7k pts, 70k pts, 700k pts, 7M pts and 70M pts are available
Acquire Mode NA
Average Time NA
Channel Amount 4
Bandwidth 1 GHz
Vertical Resolution 8bits, two channels sample at the same time
Vertical Coupling -3dB
Hold-off Range 100 ns to 10 s
Edge Trigger Auto, Normal, Single
Reading Resolution Ratio NA
Contrast Ratio NA
Power Supply 100 V-240 V, 45 Hz-440 Hz
Power 150W
Frequency 1 kHz
Background Intensity (typical) NA
Waveform Display Range Up to 180,000 waveforms per second,
Afterglow NA
Menu display NA
Screen Saver NA
Interpolation Mode NA
Screen Color Mode NA
Display Language English
Temperature Range (Min) -40°C
Temperature Range (Max) 85°C
Humidity Under +35℃: ≤90% Relative Humidity, +35℃ to +50℃: ≤60% Relative Humidity
Size (mm) NA
