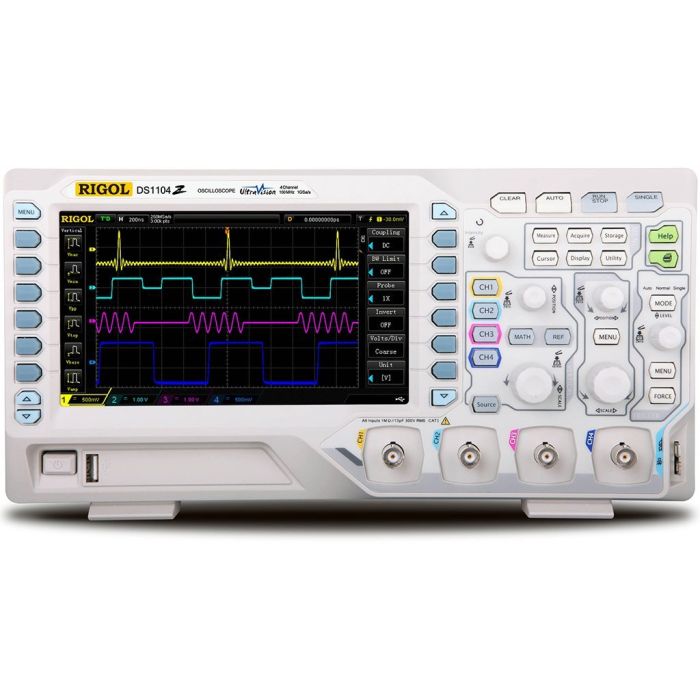

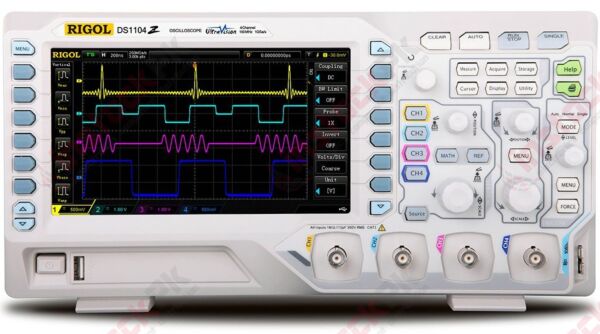

Rigol - Digital Oscilloscope DS1104Z 100 MHz with 4 Channels

More Views

Rigol - Digital Oscilloscope DS1104Z 100 MHz with 4 Channels
SKU: MD-01165
PKR 105,500.00
  • Buy 3 for PKR 98,500.00 each and save 7%
  • Buy 10 for PKR 93,500.00 each and save 12%

Availability: Preorder, Delivery in 15-20 Days

DS1000Z series are 4-channel digital oscilloscope bandwidth 70MHz ~ 100MHz, sample rates up to 1GSa / s, while bothdeep storage depth and high waveform capture rate, high-performance economical general purpose digital oscilloscopes. DS1000Z series uses many of today's advanced technology and processes,
Description

Details

DS1000Z series are 4-channel digital oscilloscope bandwidth 70MHz ~ 100MHz, sample rates up to 1GSa / s, while bothdeep storage depth and high waveform capture rate, high-performance economical general purpose digital oscilloscopes. DS1000Z series uses many of today's advanced technology and processes, the overall performance reached the international advanced level, for the most widely used digital oscilloscope markets including communications, semiconductor, computer, aerospace and defense, instrumentation, industrial electronics, consumer electronics, automotive electronics, site maintenance, research / education and many other areas of universal design / debugging / testing requirements and design an oscilloscope. DS1000Z Series Digital Oscilloscope Innovative UltraVision technology Deeper Memory Depth (Std.12Mpts,Opt.24Mpts) Higher Waveform Capture Rate (Up to 30,000 wfms/s) Real Time Waveform Record&Replay (Up to 60,000 frames, opt.) Multi-level Intensity Grading Display Advanced functions 4 Channels UltraVision: Deeper memory.



Product features

  • 100 MHz Digital Oscilloscope with 4 channels plus 12 Mpt memory and 1 GSa/sec sampling
  • 4 Channels, 100 MHz Bandwidth
  • UltraVision: Deeper memory(Std.12Mpts,Opt.24Mpts)
  • UltraVision: Up to 30,000 wfms/s Waveform capture rate
  • UltraVision: Multi-Level intensity grading display
Additional Information

Additional Information

Part Number DS1104Z
Manufacturer RIGOL
Maximum Input Voltage Analog channel : CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk Digital channel : CAT I 40 Vrms, transient overvoltage 800 Vpk
Input Coupling DC, AC or GND
Input Impedance Analog channel : (1 MΩ±1%) || (15 pF±3 pF) || Digital channel : (100 kΩ±1%) || 8 pF±3 pF)
Probe Attenuation Analog channe: 0.01X to 1000X, in 1-2-5 step
Sampling Mode Real-time sample
Sampling Rate Analog channel : 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (three/four-channel) Digital channel : 1 GSa/s (8-channel), 500 MSa/s (16-channel)
Storage Depth NA
Acquire Mode NA
Average Time NA
Channel Amount 4
Bandwidth 100MHz
Vertical Resolution NA
Vertical Coupling NA
Hold-off Range NA
Edge Trigger NA
Reading Resolution Ratio NA
Display Type No
Resolution NA
Contrast Ratio NA
Power Supply NA
Power NA
Frequency NA
Background Intensity (typical) NA
Waveform Display Range NA
Afterglow NA
Menu display NA
Screen Saver NA
Interpolation Mode NA
Screen Color Mode NA
Display Language NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Humidity NA
Size (mm) No
