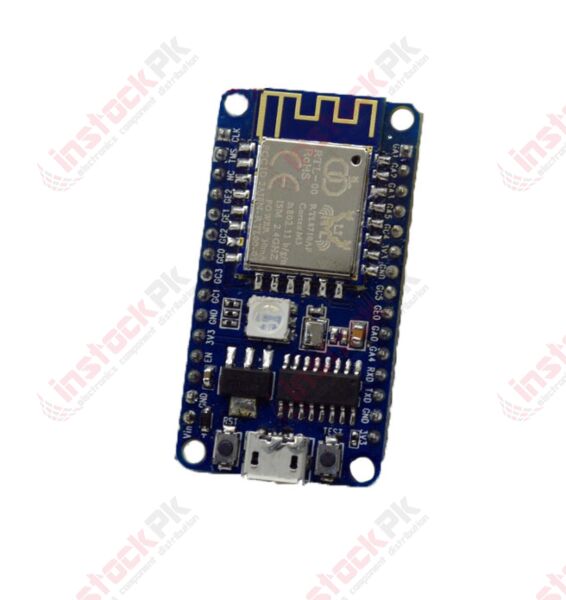

Realtek Rtlduino Wifi Development Board RTL-00 RTL8710AF

SKU
MD-00613
-27%
Special Price PKR 1,130.00 was PKR 1,550.00
Out of stock
Realtek Rtlduino Development Board RTL8710AF

SPECIFICATIONS:

  1. CPU: 32-bit ARM Cortex M3, up to 83MHz.
  2. Memory: 1MB ROM, 512KB SRAM and 1MB Flash.
  3. Integrated With 802.11 b/g/n 1x1 Wifi
  4. SDIO Device.
  5. Hardware SSL Engine.
  6. Maximum 17 GPIOs
  7. 1 SPI Support , both Master and Slave mode.
  8. 2 UART  Interfaces including one HS-UART and one Long UART.
  9. 1 12C Interfaces , both Master and Slave mode.
  10. 4-PWM Interfaces.
  11. Voltage:2.8~3.3V
  12. Power: 17dB
  13. Current:30A

PACKAGE INCLUDES:

  1. 1 X Realtek Rtlduino Development Board RTL8710AF
Weight 8.0000
Manufacturer Made in China
Model Number NA
Voltage (V) 2.8-3.3
Power 17dB
Processor Cortex M3
Frequency 2.4GHz
Memory NA
Operating System NA
Temperature Range (Min) -20°C
Temperature Range (Max) 85°C
Display Type NA
Bluetooth Interface No
Interface USB Cable
Size (mm) NA
