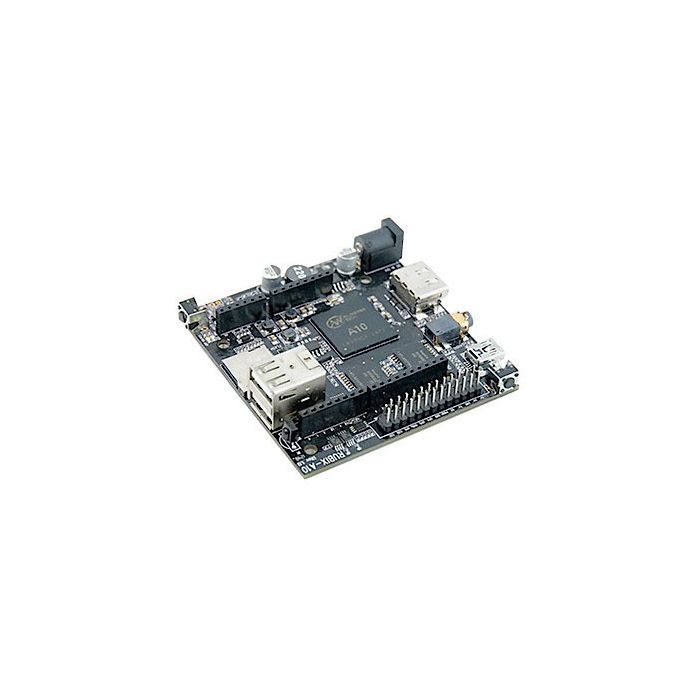

Rubix PC Shield A10 For Arudino Uno/Mega Board

SKU
MD-00623
PKR4,500.00
Quantity: 0
Rubix PC Shield A10 For Arudino Uno/Mega Board
  • Buy 5 for PKR4,275.00 each and save 5%
  • Buy 10 for PKR4,140.00 each and save 8%
  • Buy 50 for PKR4,050.00 each and save 10%

With our Rubix PC Shield for Arduino, you no longer have to choose between Arduino and Linux. With the Rubix PC Shield, you can have the best of both worlds: the vast array of accessories for Arduino and the processing power of Linux.The Rubix unit is designed as a standard Arduino Shield format. All you have to do is ‘plug’ it onto an Arduino Uno or Mega to add power to your project. With the help of the Rubix, you can now add HD Video or HD Camera to your Arduino project. You can even stream video to your Smartphone or Desktop if you wish.   From what users have been doing with the Raspberry Pi, there is no limit in what you can do with the Rubix PC Shield and Arduino together as one!

Unlike most Linux PCs in the market , the Rubix PC Shield comes with a fully functional OS. It can be used as your daily Linux PC for work or school. We’ve included Open-Source Libre Office, own version of browser and media player. We’ve even build in the ARDUINO IDE. When mated with an Arduino Board, you can program your Arduino without the use of a standard PC.

FEATURES:

  1. Fully functional Linux PC w/ Arduino IDE
  2. Functions like a typical Arduino Shield.  Simply PLUG onto an Arduino UNO (or Arduino     compatible UNO) to have1.2 GHz power for your Arduino project
  3. Developing and loading Arduino sketch directly to the Arduino board without the need of a PC
  4. Expansion headers that brings out GPIOs, I2C, UART and PWM connections.

SPECIFICATIONS:

  1. Processor: 1.2GHz ARM Cortex A8
  2. Graphics Processor: 32KB I-Cache, 32KB D-Cache and 256KB L2 Cache
  3. Video Mali: 400 GPUSuper HD 2160p hardware accelerated video playback (4x the resolution of 1080p)Support all popular video formats, including VP8AVS, H.264 MVC, VC-1, MPEG-1/2/4
  4. Audio: AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV, MIDI, M4A
  5. DRAM: 1Gbytes DDR3
  6. Storage: 4/8GBytes of MLC 64-bit ECC NAND Flash
  7. Wireless interface: 150Mb 802.11b/g/n Wi-Fi
  8. USB: 2 USB2.0 host interfaces in standard USB form factor1 USB OTG 2.0 in mini USB form factor
  9. HDMI Output :HDMI V1.3 / V1.4, up to 1080P@50/60fps
  10. Development/Expansion Interface: RS232 UART port, GPIO pins, I2C, PWM, SPI
  11. Audio Jack: Combo MIC + headphone headset
  12. IR: IR receiver
  13. Expansion storage: microSD slot (up to 128GB)
  14. Buttons: Power button, Recovery button (Design for Android)
  15. Pins: Arduino Compatible Pins
  16. Power Input: 12V/1.5-2.0A AC-DC Adapter, 5V mini USB
  17. OS: Boot from NAND flash, microSD Card

PACKAGE INCLUDES:

  1. 1 X Rubix PC Shield A10 For Arudino Uno/Mega Board



Weight (KG) 0.020000
Manufacturer Osepp
Model Number Rubix PC Shield A10
Voltage (V) 12V AC-DC Adapter, 5V mini USB
Current (A) 20m
Power NA
Processor 1.2GHz ARM Cortex A8
Frequency 1.2GHz
Operating System Boot from NAND flash, microSD Card
Temperature Range (Min) -25°C
Bluetooth Interface No
Interface 150Mb 802.11b/g/n Wi-Fi
Size (mm) NA
