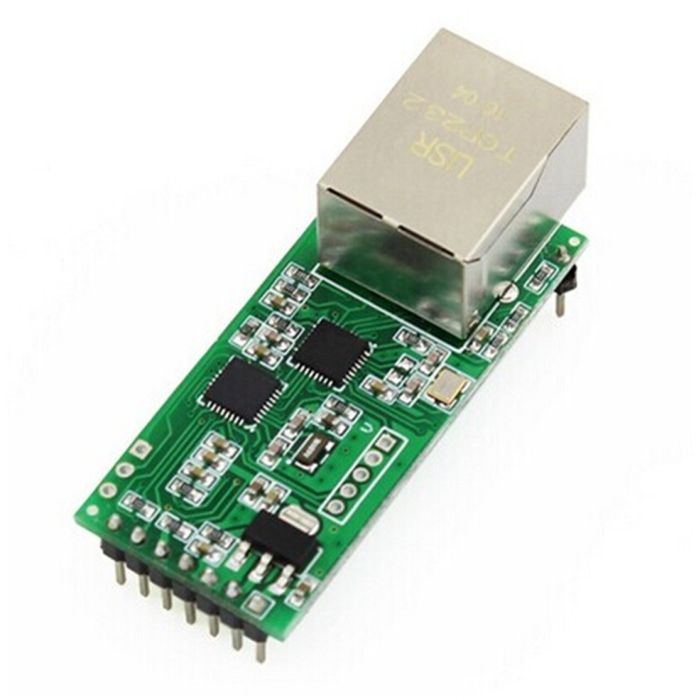

Serial UART to Ethernet Module USR-TCP232-T2

More Views

Serial UART to Ethernet Module USR-TCP232-T2
SKU: MD-00010

Regular Price: PKR 2,250.00

Special Price PKR 1,950.00

Availability: Preorder, Delivery in 15-20 Days

The USR-TCP232-T is an intelligent plug-and-play RS232 to Ethernet adapter that enables any device or machine with a serial port, to become Ethernet network and Internet enabled.
Description

Details

USR-TCP232-T2 are tiny size UART Serial Ethernet Modules which can realize data bidirectional transparent transmission between TTL and RJ45 Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed and high efficiency.

FEATURES:

  1. Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  2. Support DNS function
  3. Set parameters through webpage and serial AT command
  4. Upgrade firmware via network
  5. Auto-MDI/MDIX, RJ45 port with 10/100Mbps
  6. Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
  7. Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
  8. Support virtual serial port and provide corresponding software USR-VCOM
  9. Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
  10. User-defined registration package mechanism, check connection status and use as custom packet header
  11. Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
  12. The global unique MAC address bought from IEEE, user can define MAC address
  13. Restore factory default
  14. Across the gateway, switches, routers
  15. Can work in LAN, also can work in the Internet (external network)
  16. Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
  17. Support customization

APPLICATIONS:

  1. Industrial data transmission, industrial automation
  2. security and protection monitoring, public security
  3. Smart home, power control, environmental monitoring, intelligent agriculture
  4. Door check on work attendance system, POS system, rice selling system
  5. Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

PACKAGE INCLUDES:

  1.  1 X Serial UART to Ethernet Module USR-TCP232-T2



Additional Information

Additional Information

Part Number N/A
Manufacturer Made in China
Weight (g) 500.0000
