Sparkfun: FLIR Radiometric Lepton Development Kit KIT-15948

SKU
MD-01545
PKR73,200.00
Quantity: 0

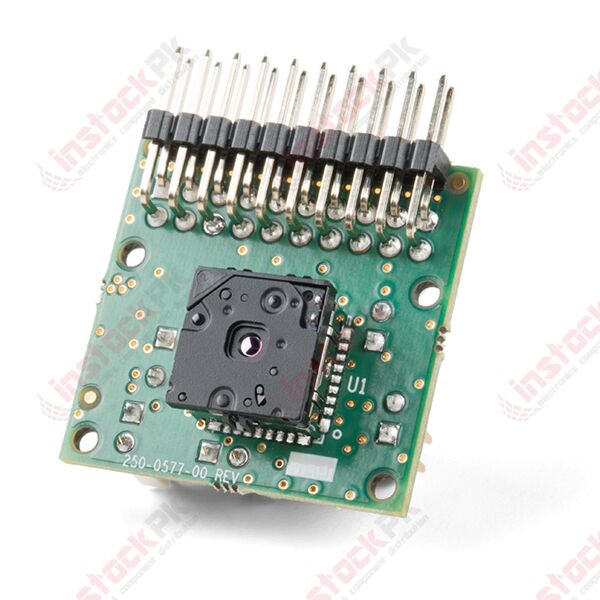

With the FLIR Radiometric Lepton® Dev Kit v2 you will be able to bring FLIR's thermal imaging reliability and power to your Arduino, Raspberry Pi, or any ARM based development tool all in an easy to access breadboard friendly package. This kit includes a breakout as well as the Lepton® 2.5 longwave infrared (LWIR) imager. All you need to do to get this kit set up, simply attach the Lepton® imager module into the provided breakout, connect the headers, and you will be seeing in full darkness in no time!
    • LWIR sensor, wavelength 8 to 14 μm
    • 50° HFOV, 60° diagonal
    • 80 (h) × 60 (v) active pixels
    • Thermal sensitivity <50 mK
    • Radiometric accuracy (35°C Blackbody) Greater of:
      • High gain: ±5C @ 25°C
      • Low gain ±10C @ 25°C
    • Pixel Size: 17 micrometers
    • Frame Rate: 9 Hz.
    • Output Format: User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)
    • SPI and I2C camera module interfaces
    • Fast time to image (< 1.2 sec)
    • Low operating power, nominally 150 mW (< 160 mW over full temperature range)
    • Input Voltage of 3V to 5.5V
    • 25-MHz reference clock (can be by-passed)
    • Power Efficient 1.2V core voltage (can be by-passed)
    • Dual Low Noise LDO for 2.8V voltage (can be by-passed)


    • 1x FLIR Lepton® 2.5 - Thermal Imaging Module
    • 1x FLIR Lepton® - Breakout Board v2.0
Part Number KIT-15948
Weight (KG) 0.050000
Manufacturer Sparkfun
Product Availability Available on Demand
Voltage (V) NA
Power NA
Frequency NA
Memory NA
Operating System Andriod
Temperature Range (Min) NA
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
