Spartan-3E Xilinx FPGA XC3S500E Development Board

PKR 9,800.00
In stock
Quantity: 2
Spartan-3E Xilinx FPGA XC3S500E Development Board
  • Buy 3 for PKR 9,310.00 each and save 5%
  • Buy 10 for PKR 9,016.00 each and save 8%

Spartan-3E Xilinx FPGA XC3S500E Development Board

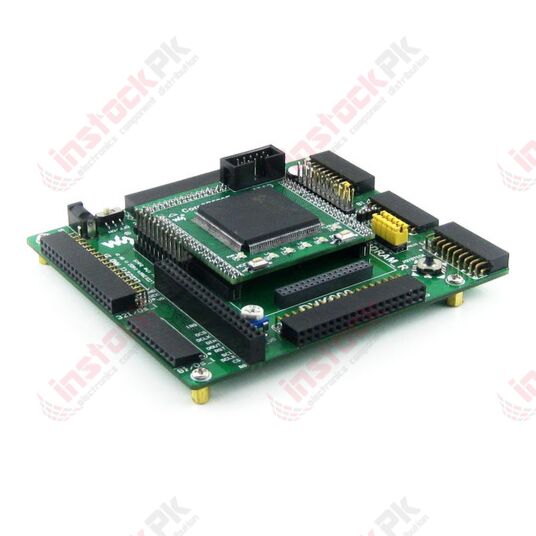

3S500E is an FPGA development board that consists of the mother board DVK600 and the FPGA core board Core3S500E. Open3S500E supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with XILINX Spartan-3E series FPGA devices.


  1. Operating Frequency: 50MHz
  2. Operating Voltage: 1.15V~3.3V
  3. Package: QFP144
  4. I/Os: 80
  5. LEs: 250K
  6. RAM: 216kb
  7. DCMs: 4
  8. Debugging/Programming: supports JTAG


Spartan 3E Development Board


  1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard, such as CoreEP2C8
  2. 8I/Os_1 interface, for connecting accessory boards/modules
  3. 8I/Os_2 interface, for connecting accessory boards/modules
  4. 16I/Os_1 interface, for connecting accessory boards/modules
  5. 16I/Os_2 interface, for connecting accessory boards/modules
  6. 32I/Os_1 interface, for connecting accessory boards/modules
  7. 32I/Os_2 interface, for connecting accessory boards/modules
  8. 32I/Os_3 interface, for connecting accessory boards/modules
  9. All the I/O interfaces above:
  10. capable of being simulated as USART, I2C, SPI, PS/2, etc.
  11. capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.
  12. SDRAM interface
  13. LCD interface, for connecting LCD22, LCD12864, LCD1602
  14. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  15. 5V DC jack
  16. Joystick: five positions
  17. Buzzer
  18. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast     adjustment
  19. Power switch
  20. Buzzer jumper
  21. ONE-WIRE jumper
  22. Joystick jumper
  23. For jumpers 17-19:
  24. for connecting SDRAM accessory board
  25. also works as FPGA CPLD pins expansion connectors
  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires


 Core 3S500E

  1. XC3S250E Chip
  2. AMS1117-3.3 (on bottom side), 3.3V voltage regulator
  3. AMS1117-2.5 (on bottom side), 2.5V voltage regulator
  4. AMS1117-1.2 (on bottom side), 1.2V voltage regulator
  5. XCF02S (on bottom side), onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. FPGA initialization indicator
  9. Reset button
  10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  11. Power switch
  12. 50M active crystal (on bottom side)
  13. 5V DC jack
  14. JTAG interface: for debugging/programming
  15. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  16. LED jumpers


  1. Spartan-3E Xilinx FPGA XC3S500E Development Board Manual
  2. Schematic: Core3S500E,DVK600
  3. Pin Configurations


  1. 1 X Spartan-3E Xilinx FPGA XC3S500E Development Board
Part Number Open3S500E Standard
Weight (KG) 0.200000
Manufacturer Waveshare
Product Availability In Stock
Model Number NA
Voltage (V) NA
Power NA
Frequency NA
Memory NA
Operating System NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
