Digilent: Nexys 3 Spartan-6 FPGA Trainer Board - 410-182

SKU
MD-00121
PKR0.00
Quantity: 4

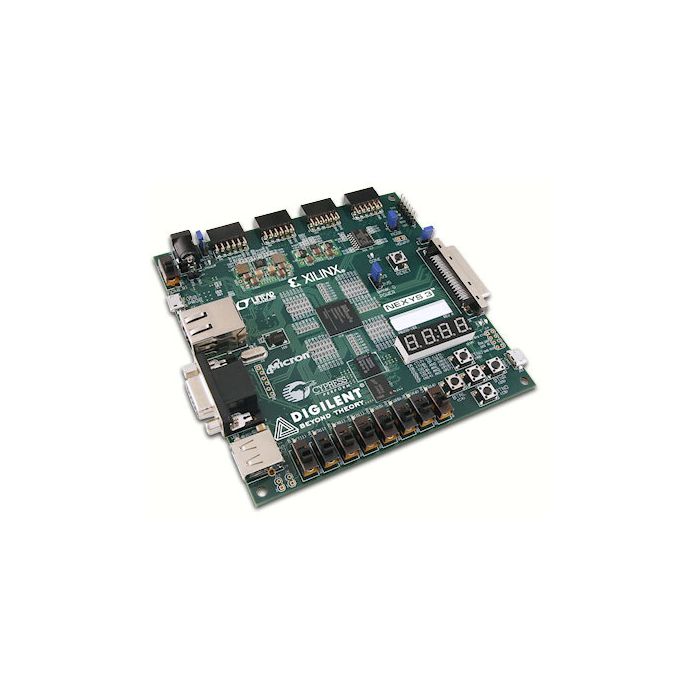

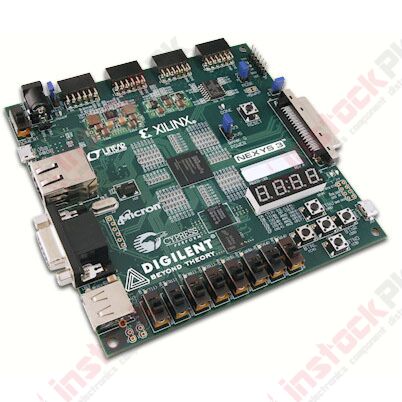

The Nexys™3 digital system development platform features Xilinx's newest Spartan-6 FPGA, 48Mbytes of external memory (including two non-volatile phase-change memories from Micron), and enough I/O devices and ports to host a wide variety of digital systems. The Nexys3 is an ideal platform for any engineer to gain experience with Xilinx's latest technologies, and it is perfectly suited to the classroom - new students can build logic circuits without worrying about complex external interfaces, and more advanced students can build complete digital systems, including controllers, CODECs, and embedded processors.

The on-board Adept™ high-speed USB2 port provides board power, FPGA programming, and user-data transfers at rates up to 38Mbytes/sec. A large collection of low-cost peripheral boards, including more than 30 Pmods™ and several new Vmods™, can add additional features to the Nexys3, including A/D and D/A converters, breadboards, motor drivers, displays, etc. The Nexys3 is fully compatible with all Xilinx tools, including the free WebPack™ as well as Chipscope™, EDK™ (embedded processor design kit) and other tools.

 SPECIFICATIONS:

  1. The main chip Xilinx Spartan6 XC6LX16-CSG324
  2. 16M bytes of Micron's Cellular RAM
  3. 16M byte parallel Micron's PCM
  4. 10/100 Ethernet
  5. USB UART
  6. A USB interface, you can access the mouse, keyboard and memory stick
  7. 8 VGA interface RGB signal
  8. 100MHz crystal oscillator
  9. Four 2x6-pin connector PmodTM low
  10. A 68-pin high-speed expansion connector VHDCI
  11. 8 DIP switches, 4 buttons
  12. Four 7-segment, 8 LED
  13. A USB interface provides power and data transmission is programmed
  14. 16Mbyte Micron Quad-mode SPI PCM

BLOCK DIAGRAM:

 Block Diagram of Spartan 6 Xc6SLX16

 RELATED DOCUMENTS:

  1. Nexys3™ Board Schmetic Diagram
  2. Nexys3™ Board Reference Manual

PACKAGE INCLUDES:

  1. 1 X Nexys 3 Spartan-6 FPGA Trainer Board XC6LX16-CS324



Part Number 410-182
Manufacturer Digilent
Weight (KG) 0.244000
Product Availability In Stock
