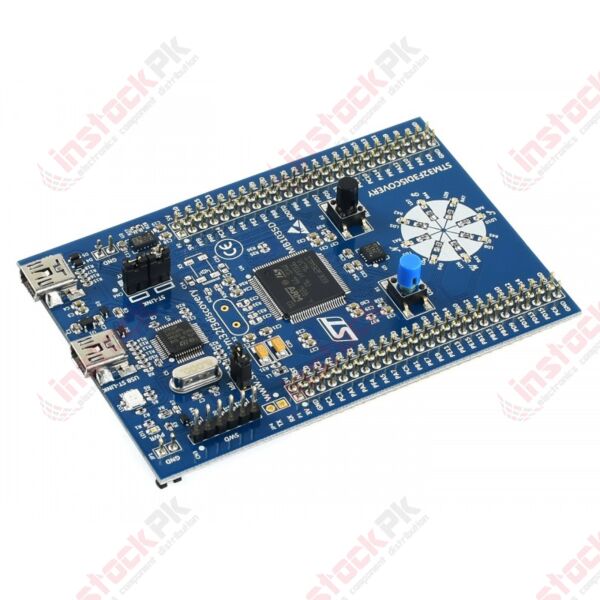

ST Microelectronics: Evaluation Board DISCOVERY Kit STM32F3DISCOVERY

SKU
MD-01515
PKR 3,800.00
In stock
Quantity: 4
The STM32F3DISCOVERY allows users to easily develop applications with the STM32F3 Series based on ARM® Cortex®-M4mixed-signal MCU. It includes everything required for beginners and experienced users to get started quickly.
  • Buy 3 for PKR 3,610.00 each and save 5%

The STM32F3DISCOVERY allows users to easily develop applications with the STM32F3 Series based on ARM® Cortex®-M4mixed-signal MCU. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F303VCT6, it includes an ST-LINK/V2 or ST-LINK/V2-B embedded debug tool, accelerometer, gyroscope and e-compass ST MEMS, USB connection, LEDs and push-buttons.
The STM32F3DISCOVERY discovery board does not support the STM32F313xx MCUs (1.65 V to 1.95 V power supply).

Key Features

  • STM32F303VCT6 microcontroller featuring 256-Kbyte Flash memory, 48-Kbyte RAM in an LQFP100 package
  • On-board ST-LINK/V2 for PCB version A or B or ST-LINK/V2-B for PCB version C and newer
  • USB ST-LINK functions:
    • Debug port
    • Virtual COM port with ST-LINK/V2-B only
    • Mass storage with ST-LINK/2-B only
  • Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • L3GD20, ST MEMS motion sensor, 3-axis digital output gyroscope
  • LSM303DLHC, ST MEMS system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
  • Ten LEDs:
    • LD1 (red) for 3.3 V power on
    • LD2 (red/green) for USB communication
    • Eight user LEDs: LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
  • Two push-buttons (user and reset)
  • USB USER with Mini-B connector
  • Extension header for all LQFP100 I/Os for quick connection to prototype board and easy probing
  • Comprehensive free software including a variety of examples, part of STM32CubeF3 package or STSW-STM32118 for legacy Standard Library usage
Part Number STM32F3DISCOVERY
Weight (KG) 0.100000
Manufacturer STMICROELECTRONICS
Product Availability In Stock
Voltage (V) NA
Power NA
Frequency NA
Memory NA
Operating System NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
