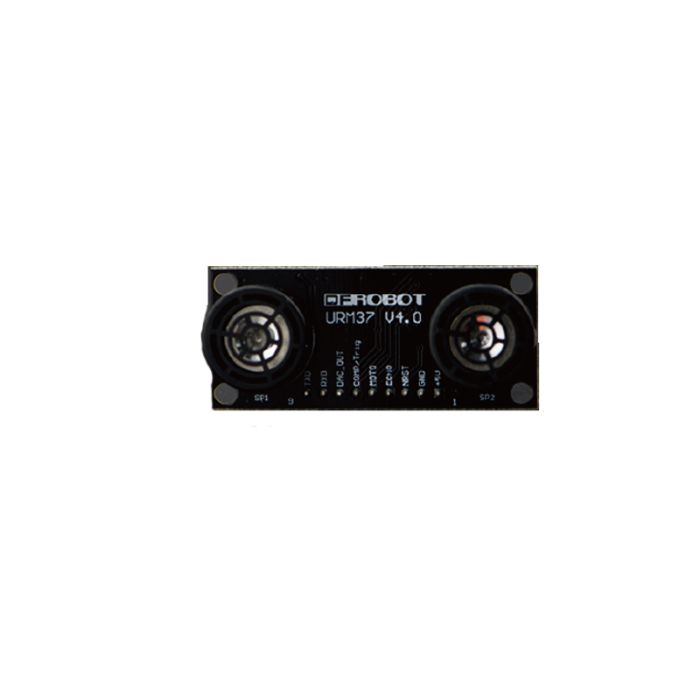

DFRobot: Fermion Ultrasonic Sensor URM37 (2-800cm) - SEN0001
SKU
MD-00431
PKR2,640.00
Quantity: 2
The URM V4.0 Ultrasonic Sensor comes with a temperature correction which is a very unique feature in its class.
- Buy 3 for PKR2,508.00 each and save 5%
- Buy 10 for PKR2,428.80 each and save 8%
Category: Sensors
The URM V4.0 Ultrasonic Sensor comes with a temperature correction which is a very unique feature in its class. URM37 V4.0 (last version) has already been a very good realization of ultrasonic switch and serial (TTL and RS232 level optional), pulse output function, the module can also control a servo rotation to realize a spatial ultrasound scanner. On this basis we have to upgrade the function.
FEATURES:
- Power reverse protection
- Automatic measurement of time interval can be modified
- Modify a servo controlled angle of 0-180, compatible with the most of the servos on the market
- Measuring time is 100ms
- Serial level selected from the skipped stitches to button, user can easily select RS232 or TTL-level output level output by pressing the settings(after reboot)
- Modified the algorithm, so dead zone was reduced and enhance accuracy
- Analog voltage output, voltage and the measured distance is proportional
SPECIFICATIONS:
- Power: +3.3V～+5.0V
- Current: <20mA
- Working temperature: -10 ~ +70 C
- Detecting range: 5cm-500cm
- Resolution: 1cm
- Interface: RS232 (TTL), PWM
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Ultrasonic Sensor URM37 (V4.0)
| Part Number | SEN0001 |
|---|---|
| Weight (KG) | 0.020000 |
| Manufacturer | DFRobot |
| Product Availability | In Stock |
| Voltage (Min) | 3.3V |
| Voltage (Max) | 5V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | 20m |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | Digital |
| Range | 5~500cm |
| Temperature Range (Min) | -10°C |
| Temperature Range (Max) | 70°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | RS232 (TTL), PWM |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | NA |
