UNI-T - Digital Storage Oscilloscope UTD2102CEX

More Views

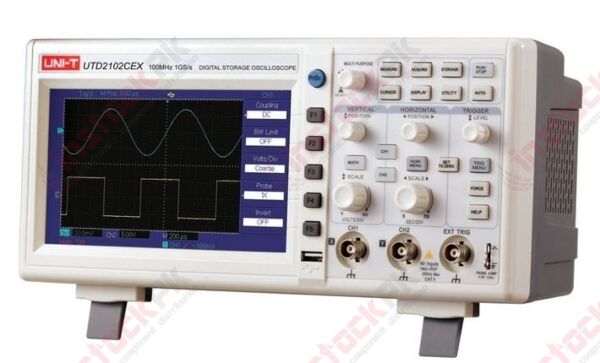

UNI-T - Digital Storage Oscilloscope UTD2102CEX
SKU: MD-01232
PKR 45,500.00

Availability: Preorder, Delivery in 15-20 Days

UNI-T's UTD2102CEX digital storage oscilloscope is a 2 channel, 100MHz bandwidth, 1GS/s sampling rate device.
Description

Details

Description:

  • 1. Dual analog channels width range 1mV/div~20V/div;
  • 2. 7 inches widescreen LCD displays;
    3. The new interface style;
    4Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
    5USB drive system software upgrade;
    6Storage of waveforms setups and interfaces waveforms and setups reproduction;
    7Automatic measurement of 32 waveform parameters;
    8Unique waveform recording and replay function;
    9Multilingual menu displays.
Specification UTD2102CEX
Channels 2
Bandwidth 100MHz
Sample Rate 1GS/s
Rise Time ≤3.5ns
Memory Depth 25kpts
Waveform Acquisition Rate   ≥2000wfms/s
Vertical Sensitivity(V/div) 1mV/div~20V/div
Timebase Range(s/div) 2ns/div~50s/div
Storage Setup,Wave,Bitmap
Trigger Modes Edge, Pluse, Video,Slope,Alternate
Interface USB OTG
General Characteristic
Power 100-240VAC, 45-440Hz
Display 7 Inches 64k Color TFT LCD, 800×480
Product Color White and Gray
Product Net Weight 2.2 kg
Product Size (W×H×D) 306mm ×147mm × 122mm
Standard Accessories Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 2 PCs
Standard Carton Measurement (L×W×H) 450mm× 420mm × 280mm
Standard Carton Cross Weight 8.5 kg
Optional Accessories*
LA Module





Additional Information

Additional Information

Part Number UTD2102CEX
Manufacturer UNI-T
Maximum Input Voltage No
Input Coupling No
Input Impedance NA
Probe Attenuation NA
Sampling Mode NA
Sampling Rate NA
Storage Depth NA
Acquire Mode NA
Average Time NA
Channel Amount NA
Bandwidth NA
Vertical Resolution NA
Vertical Coupling NA
Hold-off Range NA
Edge Trigger NA
Reading Resolution Ratio NA
Display Type No
Resolution NA
Contrast Ratio NA
Power Supply NA
Power NA
Frequency NA
Background Intensity (typical) NA
Waveform Display Range NA
Afterglow NA
Menu display NA
Screen Saver NA
Interpolation Mode NA
Screen Color Mode NA
Display Language NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Humidity NA
Size (mm) No
