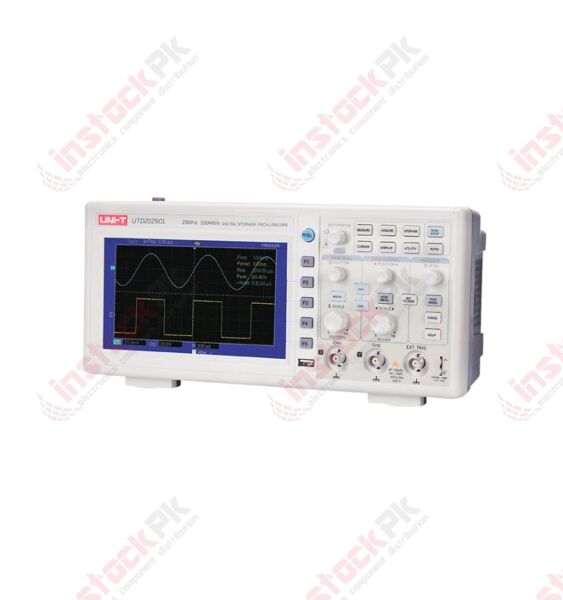

UNI-T (UTD2025CL) Dual Channel Digital Storage Oscilloscope (25MHz)
- Buy 3 for PKR41,154.00 each and save 5%
- Buy 5 for PKR39,854.40 each and save 8%
The UNI-T UTD2025CL is a bench-top-based oscilloscope that can be used to accurately display fluctuations of signals with 2MHz bandwidth.A dual channel digital oscilloscope, the UTD2025CL allows users to track two different signals at the same time and compare overall differences in the waveform display. Representations of signal input are shown on the devices' extremely large 7 inch colour TFT screen (400 x 240) with sample rate of 250ms/s.Since this is a storage oscilloscope the unit allows measurements to be stored on the unit (memory depth is 25kpts) and this data can also be transmitted to PC via the use of a USB cable.
The UTD2025CL features rise time of ≤14ns, waveform acquisition rate of ≥2000wfms/s and includes multiple trigger modes (Edge, Pulse, Video and Alternate).This product is EN 61010-1 and CAT II 300V compliant.
FEATURES:
- Dual analog channels width range 1mV/div~20V/div;
- 7 inches widescreen LCD displays;
- Special Print Scree Feature;
- Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
- USB drive system software upgrade;
- Storage of waveforms setups and interfaces waveforms and setups reproduction;
- Automatic measurement of 28 waveform parameters;
- Unique waveform recording and replay function;
- Multilingual menu displays
SPECIFICATIONS:
- Channels: 2
- Bandwidth: 25MHz
- Sample Rate: 250MS/s
- Rise Time: ≤14ns
- Memory Depth: 25kpts
- Waveform Acquisition Rate: ≥2000wfms/s
- Vertical Sensitivity: 1mV/div~20V/div
- Timebase Range:10ns/div~50s/div
- Storage: Setup,Wave,Bitmap
- Trigger Modes : Edge, Pluse, Video, Alternate
- Interface: USB OTG,Pass/Fail
- Power: 100-240VAC, 40-440Hz
- Display: 7 Inches 64K Color TFT LCD, 400×240
- Product Size (W×H×D): 306mm ×147mm × 122mm
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X UNI-T (UTD2025CL) Dual Channel Digital Storage Oscilloscope (25MHz)
| Part Number | NA |
|---|---|
| Weight (KG) | 2.200000 |
| Manufacturer | UNI-T |
| Product Availability | In Stock |
| Maximum Input Voltage | 100-240VAC, 40-440Hz |
| Input Impedance | NA |
| Probe Attenuation | NA |
| Sampling Mode | NA |
| Sampling Rate | 250MS/s |
| Storage Depth | 25kpts |
| Acquire Mode | NA |
| Average Time | NA |
| Channel Amount | 2 |
| Bandwidth | 25MHz |
| Vertical Resolution | 1mV/div~20V/div |
| Vertical Coupling | AC,DC,GND |
| Hold-off Range | NA |
| Edge Trigger | Edge, Pluse, Video, Alternate |
| Reading Resolution Ratio | NA |
| Display Resolution (Pixels) | 400 × 240 |
| Contrast Ratio | NA |
| Power | NA |
| Frequency | NA |
| Background Intensity (typical) | NA |
| Waveform Display Range | NA |
| Afterglow | NA |
| Menu display | NA |
| Screen Saver | NA |
| Interpolation Mode | NA |
| Screen Color Mode | NA |
| Display Language | NA |
| Temperature Range (Min) | -40°C |
| Humidity | NA |
| Size (mm) | 306mm ×147mm × 122mm |
