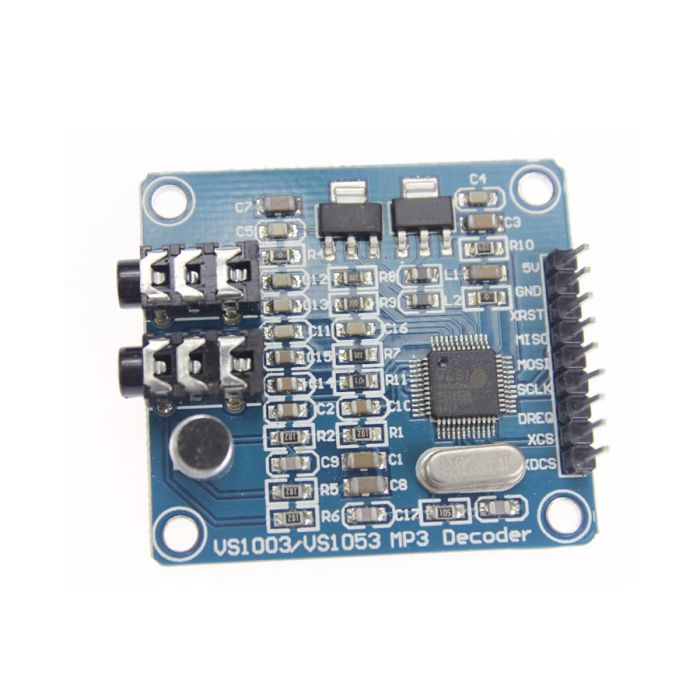

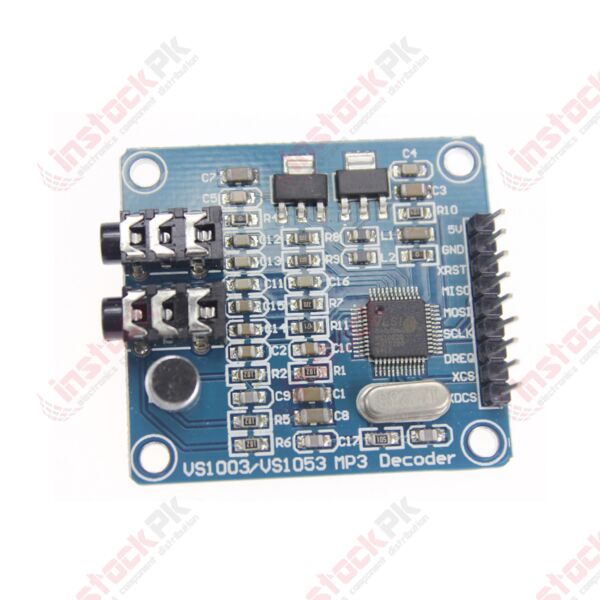

VS1003B MP3 Module with Microcontroller (STM32)
SKU
MD-00050
Special Price
PKR1,800.00
was
PKR2,200.00
Quantity: 0
1) VS1003 audio decoding formats : MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI;
2) Recording encoding format : IMA ADPCM ( monaural ) , microphone and line input (Line input) two input methods
3) Supports MP3 and WAV streams
4) Low power consumption
5) Has internal PLL clock frequency multiplier
6) Quality stereo DAC (DAC)
7) Adjustable on-chip analog to digital converter (ADC) 16 spaces
8) Separate analog , digital, and IO power supply ;
9) Serial data and control interface (SPI);
Categories: Communication Modules, Others
Specifications :
1) VS1003 audio decoding formats : MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI; recording encoding format : IMA ADPCM ( monaural ) , microphone and line input (Line input) two input methods ; supports MP3 and WAV streams ; low power consumption ; has internal PLL clock frequency multiplier ; quality stereo DAC (DAC); adjustable on-chip analog to digital converter (ADC) 16 spaces; quality stereo ear drive ( 30 euro ) ; separate analog , digital, and IO power supply ; serial data and control interface (SPI);
2) SPI interface, the control signal lines are drawn
3) headphone and audio output interface
4) A microphone for recording
5) An input interface line_in
6) the power indicator
7) Onboard 3.3V and 2.5V LDO 1117, provides 800mA maximum current
8) A single power supply : +5 VDC, capacitor filter
9) 12.288 Mhz crystal
10) PCB size : 50x40.5 mm
1) VS1003 audio decoding formats : MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI; recording encoding format : IMA ADPCM ( monaural ) , microphone and line input (Line input) two input methods ; supports MP3 and WAV streams ; low power consumption ; has internal PLL clock frequency multiplier ; quality stereo DAC (DAC); adjustable on-chip analog to digital converter (ADC) 16 spaces; quality stereo ear drive ( 30 euro ) ; separate analog , digital, and IO power supply ; serial data and control interface (SPI);
2) SPI interface, the control signal lines are drawn
3) headphone and audio output interface
4) A microphone for recording
5) An input interface line_in
6) the power indicator
7) Onboard 3.3V and 2.5V LDO 1117, provides 800mA maximum current
8) A single power supply : +5 VDC, capacitor filter
9) 12.288 Mhz crystal
10) PCB size : 50x40.5 mm
| Part Number | NA |
|---|---|
| Product Availability | Available on Demand |
| Weight (KG) | 0.080000 |
