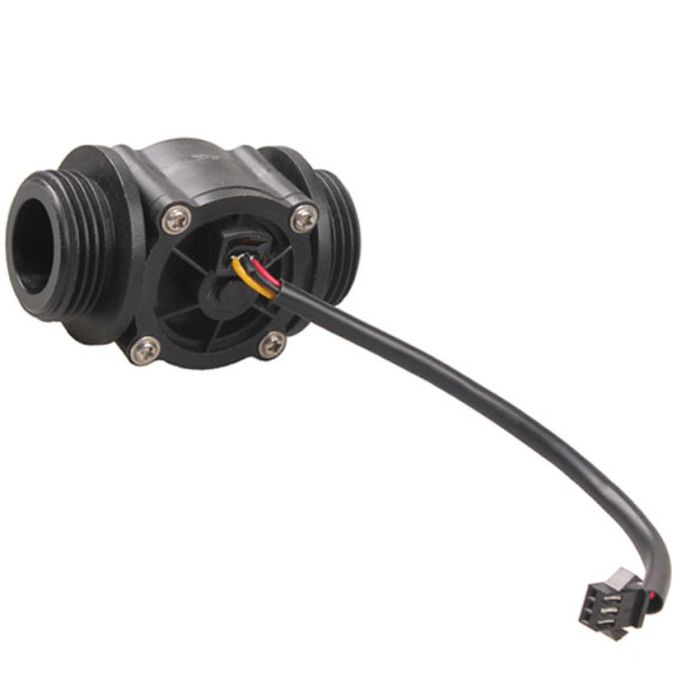

Water Proof Water Flow Meter Hall Effect Sensor G1 FS400A 1 Inch 1-60L/min

SKU
MD-01083
-4%
Special Price PKR 1,250.00 was PKR 1,300.00
In stock
Waterproof, heat resistance, pressure resistance, cold resistance Easy to install

Waterproof, heat resistance, pressure resistance, cold resistance

Frequency: F=4.8 * Q (L / Min) error: ± 2% voltage: 3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters,

F=constant * units of flow (L / min) * time (seconds).

Flow range: 1-60L/min

Maximum current: 15 mA (DC 5V)

Working voltage range: DC 5  to 24 V

Load capacity:≤10 mA(DC 5V)

Operating Temp:≤80Celsius,

Operating humidity:35%  to 90%RH

Allow compression: Water pressure >1.20Mpa

Insulation resistance: >100M OHM

Storage Temperature:-25 -+80Celsius

Storage humidity:25% -95%RH

Output Waveform: Square Wave, output pulse signal

ROHS Compliant

Material: ABS Plastic

Color: Black

Cable length: approx. 15cm

Part Number FS400A
Weight (KG) 0.050000
