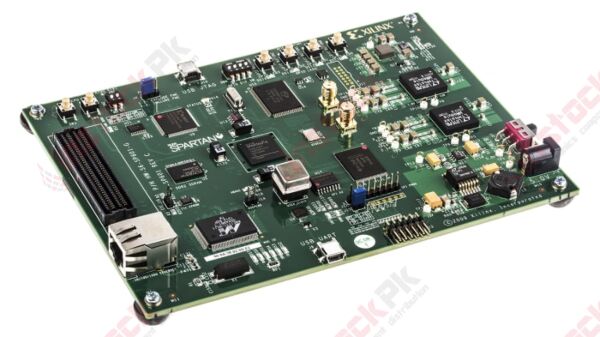

Xilinx: Spartan-6 FPGA SP601 Evaluation Kit EK-S6-SP601-G 0431608-02

SKU
MD-01575
PKR 95,500.00
In stock
Quantity: 1
Buy EK-S6-SP601-G from InStock Pakistan, Xilinx: Spartan-6 FPGA SP601 Evaluation Kit EK-S6-SP601-G 0431608-02 MD-01575 from Xilinx. Get datasheet, inventory, & pricing.
The Spartan®-6 FPGA SP601 Evaluation Kit is an ideal entry-level development environment for evaluating the Spartan-6 FPGA Family. This kit delivers all the basic components for system development and provides reference designs and examples to allow more rapid access to features such as the integrated memory interface core. It provides an integration of hardware, software, IP, and preverified reference designs so development can begin right out of the box.,The SP601 Kit provides a flexible environment for higher-level system design including applications which need to implement features such as Ethernet or DDR2. This kit includes an industry-standard FMC (FPGA Mezzanine Card) connector for future scaling and customization to specific applications and markets.

Key Features

  • Hardware, design tools, IP, and pre-verified reference designs
  • Expand I/O with the FPGA Mezzanine Card (FMC) interface and Digilent 2x6 Header
  • Contains 128MB of DDR2 Component Memory and 8Kb IIC EEPROM
  • Develop networking applications with 10-100-1000 Mbps Ethernet PHY
  • 4x LEDs for display
  • User control with 4 push buttons and 4 DIP Switches
  • Onboard configuration circuitry, 8MB Quad SPI Flash, 16MB Parallel (BPI) Flash, JTAG
  • Memory : DDR2 Component Memory 128MB, IIC 8Kb IIC EEPROM
  • Communication : 10 / 100 / 1000 Tri-Speed Ethernet PHY, Serial (UART) to USB Bridge
  • Expansion Connectors : FMC-LPC connector (68 single-ended or 34 differential user defined signals) , 8 User I/O (Digilent 2x6 Header)
  • Clocking : 200MHz Oscillator (Differential), Socket (Single-Ended) Populated with 27MHz Osc, SMA Connectors (Differential)
What's Included
  • SP601 evaluation board featuring the Spartan-6 XC6SLX16-CSG324-2C FPGA
  • ISE® Design Suite: WebPACK edition
  • Getting Started Guide
  • Target Reference Design featuring DSP48, Gigabit Ethernet, and DDR3 Memory Controller
  • Cables & Power Supply

Supplied with

ISE Design Suite WebPACK Edition, Setup/User guides, Schematics and PCB files, Universal 5V power supply, 2 USB cables, 1 Ethernet cable, Reference designs, demos.

Specification

Attribute Value
Programmable Logic Technology FPGA
Kit Classification Evaluation Kit
Featured Device XC6SLX16-CS324
Kit Name Spartan-6 SP601
Part Number EK-S6-SP601-G
Manufacturer Xilinx
Weight (KG) 2.000000
Memory NA
