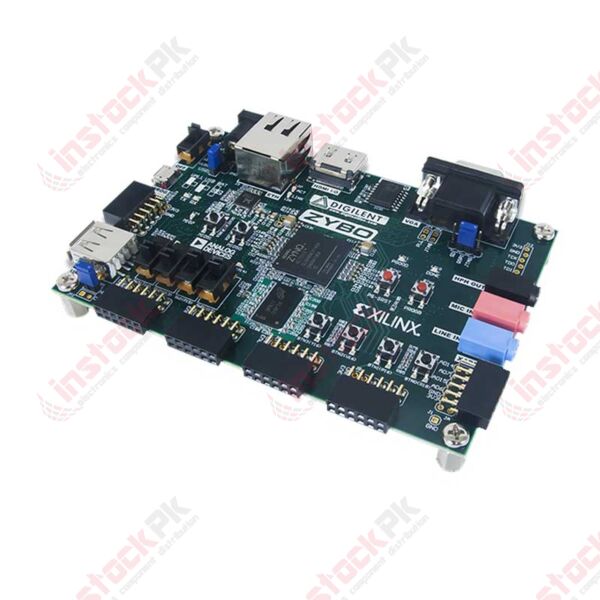

Zybo Zynq-7000 ARM/FPGA SoC Trainer Board

SKU
MD-00360
PKR29,550.00
Quantity: 0
The Zybo provides an ultra-low cost alternative to the ZedBoard for designers that don't require the high-density I/O of the FMC connector, but still wish to leverage the massive processing power and extensibility of the Zynq AP SoC architecture.
  • Buy 3 for PKR28,080.00 each and save 5%
  • Buy 10 for PKR27,180.00 each and save 8%
  • Buy 50 for PKR26,600.00 each and save 10%

The Zybo (Zynq™ Board) is a feature-rich, ready-to-use, entry-level embedded software and digital circuit development platform built around the smallest member of the Xilinx Zynq-7000 family, the Z-7010. The Z-7010 is based on the Xilinx® All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series field programmable gate array (FPGA) logic. When coupled with the rich set of multimedia and connectivity peripherals available on the Zybo, the Zynq Z-7010 can host a whole system design. The on-board memories, video and audio I/O, dual-role USB, Ethernet and SD slot will have your design up-and-ready with no additional hardware needed. Additionally, six Pmod connectors are available to put any design on an easy growth path.

 The Zybo provides an ultra-low cost alternative to the ZedBoard for designers that don't require the high-density I/O of the FMC connector, but still wish to leverage the massive processing power and extensibility of the Zynq AP SoC architecture.

 The Zybo is compatible with Xilinx's new high-performance Vivado® Design Suite as well as the ISE®/EDK toolset. These toolsets meld FPGA logic design with embedded ARM software development into an easy to use, intuitive design flow. They can be used for designing systems of any complexity, from a complete operating system running multiple server applications in tandem, down to a simple bare-metal program that controls some LEDs. For systems that require an operating system, Digilent provides an out-of-the-box Linux® solution specifically targeted to run on the Zybo, complete with documentation describing how best to mold it to suite your purposes.

FEATURES:

  1. Xilinx Zynq-7000 (XC7Z010-1CLG400C)
  2. 28,000 logic cells
  3. 240 KB Block RAM
  4. 80 DSP slices
  5. On-chip dual channel, 12-bit, 1 MSPS analog-to-digital converter (XADC)
  6. 650 MHz dual-core Cortex™-A9 processor
  7. On-board JTAG programming and UART to USB converter
  8. DDR3 memory controller with 8 DMA channels
  9. 512 MB x32 DDR3 w/ 1050Mbps bandwidth
  10. 128 Mb Serial Flash w/ QSPI interface
  11. microSD slot (supports Linux file system)
  12. High-bandwith peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  13. Low-bandwidth peripheral controller: SPI, UART, I2C
  14. Dual-role (Source/Sink) HDMI port
  15. 16-bits per pixel VGA output port
  16. Trimode (1Gbit/100Mbit/10Mbit) Ethernet PHY
  17. OTG USB 2.0 PHY (supports host and device)
  18. External EEPROM (programmed with 48-bit globally unique EUI-48/64™ compatible identifier)
  19. Audio codec with headphone out, microphone and line in jacks
  20. GPIO: 6 pushbuttons, 4 slide switches, 5 LEDs
  21. Six Pmod connectors (1 processor-dedicated, 1 dual analog/digital)

 RELATED DOCUMENTS:

  1. Zybo Zynq-7000 ARM/FPGA SoC Trainer Board Datasheet
  2. Zybo Zynq-7000 ARM/FPGA SoC Trainer Board Schmatic

PACKAGE INCLUDES:

  1. 1 X Zybo Zynq-7000 ARM/FPGA SoC Trainer Board
Part Number NA
Weight (KG) 0.050000
Manufacturer Digilent
Model Number Zybo Zynq-7000 ARM/FPGA
Voltage (V) 5
Current (A) 2.5
Power NA
Processor Xilinx Zynq-7000 (XC7Z010-1CLG400C)
Frequency 650 MHz dual-core Cortex™-A9
Operating System NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Bluetooth Interface No
Interface 1G Ethernet, USB 2.0, SDIO, SPI, UART, I2C, HDMI port, VGA output port
Size (mm) NA
